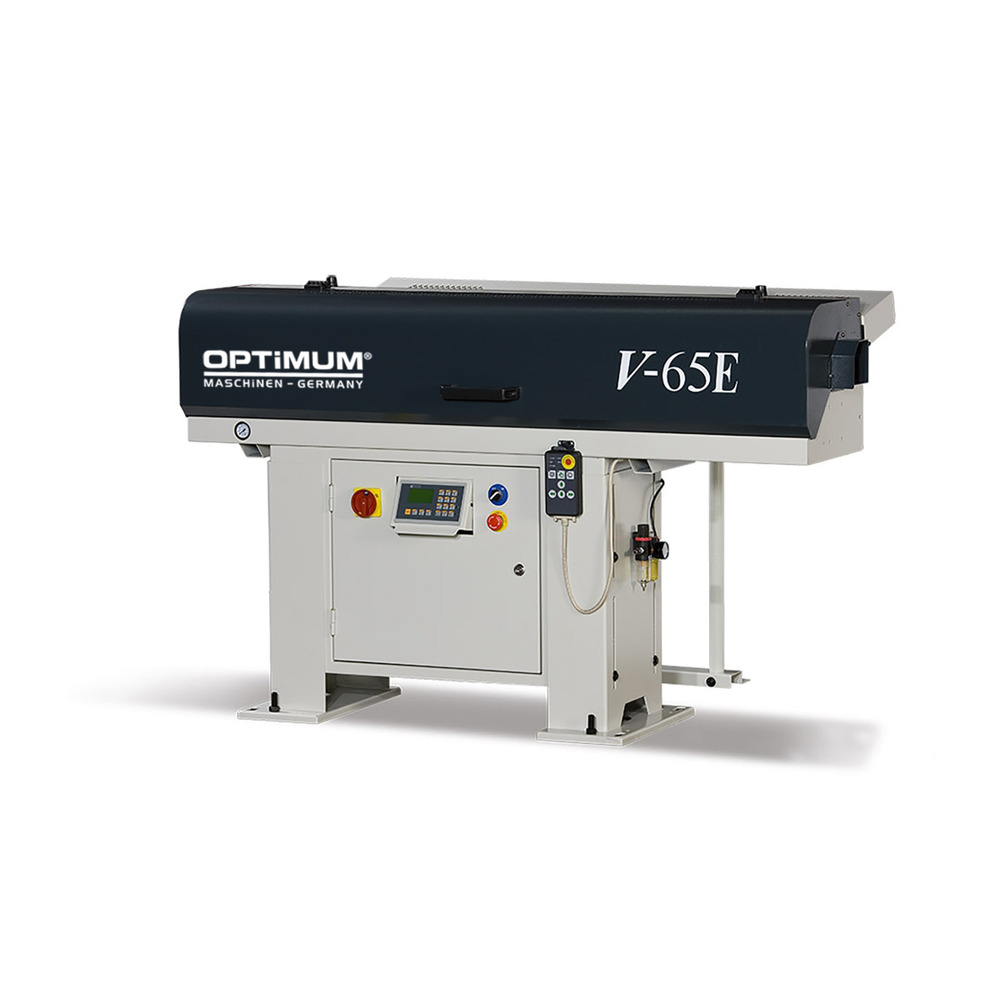

Ładowarka prętów Optimum Pro V 65LE

The Pro V 65E / Pro V 65LE bar feeder is the ideal solution for automatic loading of CNC lathes with short bars. It combines maximum productivity with a small footprint and is equipped with a magazine in the E variant for up to 1,200 mm bar length and in the LE variant for up to 1,500 mm.

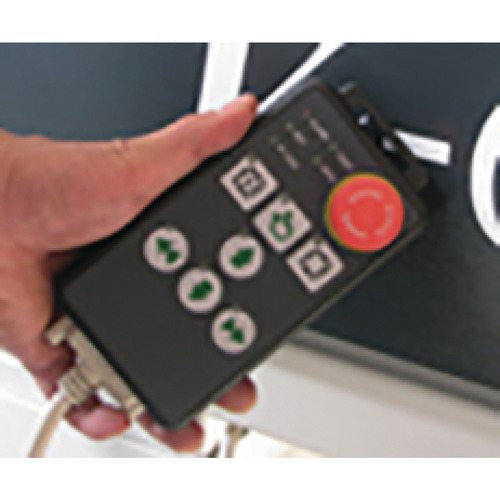

Simple operating unit and remote control
A user-friendly operating unit and the remote control ensure the interaction between the loading magazine and the lathe. This allows the production process to be carried out safely and efficiently.

• Mitsubishi PLC controllerTouch-screen digital interface
• with LCD displayVarious
• settings of functions and parameters are clearly visible on the display for easy and clear operationAlarm display
for
• troubleshootingBasic functions
• can be called up with the remote controlStick diameter
Ø 5.0 mm ~ F 65 mm
• High charging speed, specially developed design
• No special requirements or restrictions regarding material straightness.
• Material rotates within the machining range and spindle length of the lathe.
• Turning spindle speed can be maximized.
• Material can be round, hexagonal, and shaped.
• Material length can be uniform or different.
• Easy to operate and maintain.
