Kod produktu:
STU 1085530
EAN:
4036351323402
Niedostępny
BRUTTO:
46 373,90 zł
W magazynie:
0
Wysyłka: 48H
Produkt niedostępny
Informacje o producencie
Schweisskraft
Stürmer Maschinen GmbH
info(at)stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103
Hallstadt
Niemcy
- Performance increase and quality improvement through digitally controlled MIG/MAG industrial processes
- POWER.PULS: Weld stainless steel faster with TIG-like seam surface; Hardly any tarnish; Adjustable heat input; Welds in TIG look with double pulse; Weld-over helpers
- POWER.ARC: high arc quality, calm, stable and high-energy arc
- ROOT: spatter-free welding process for thin sheet and root welds with very good gap bridging, safe penetration and significantly higher welding speed for drop welds
- FOCUS.ARC: Welding with short, powerful arc, safe root penetration, particularly deep penetration, safe flank penetration and reduced penetration notches.
- Increased quality through better visibility into the process, better control over the arc and fewer defects

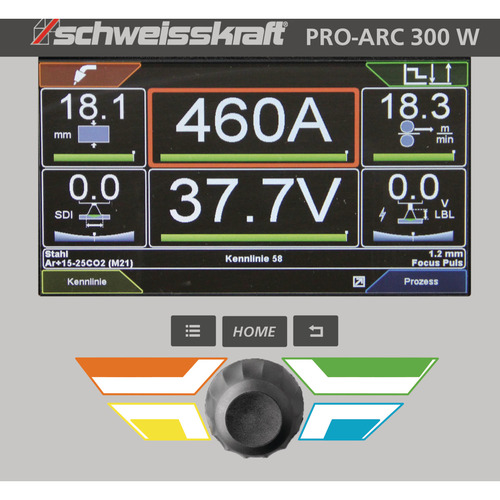

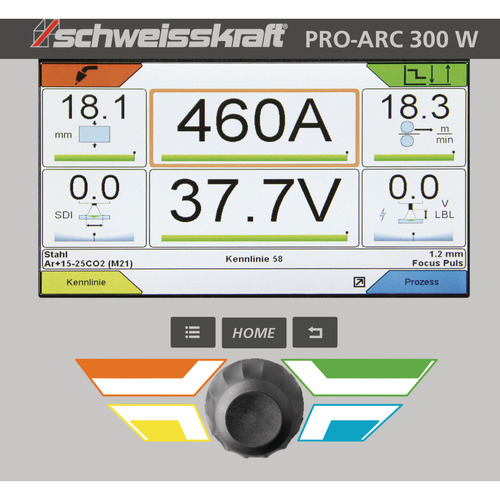

- SIRIUS user interface with Assist function for simplified operation of complex processes, easy integration into all systems, production chains and processes via freely configurable interface with full Industry 4.0 capability
- Monitoring and setting of welding parameters e.g. via tablet or smartphone
- Intelligent, resource-saving water cooling unit: centrifugal pump with high delivery rate, energy management measures the coolant temperature and cools only when required, extending the service life of all components
- Job memory for up to 500 programs
Parametr
Wartość
Długość (produktu) ok.
930 mm
Szerokość/głębokość (produkt) ok.
560 mm
Wysokość (produktu) ok.
1030 mm
Waga (netto) ok.
86 kg
Napięcie zasilania
400 V
Częstotliwość sieci
50 Hz
Współczynnik mocy
0,99 cos phi
Pojemność zbiornika na wodę
5 l
Process MIG/MAG
✔
Process MMA
✔
Zakres ustawień MIG/MAG
20 – 310 A
Cykl pracy przy maks. prądzie 40°C
80 %
Prąd przy ED 100% 40 °C
280 A
Druty spawalne Stal
0,8 – 1,2 mm
druty spawalne stal nierdzewna
0,8 – 1,2 mm
druty spawalne Aluminium
1,0 – 1,2 mm
Jednostka zasilająca z drutu
4 Rolki
Zużycie energii MIG/MAG
11 kVA
Dodatnia tolerancja napięcia sieciowego
15 %
Ujemna tolerancja napięcia sieciowego
15 %
Napięcie w obwodzie otwartym
89 V
Tryb chłodzenia
AF
Rodzaj chłodzenia palnika
Woda
Type of construction
kompaktowa
Butla(y) gazowa(e) maks.
50 l
FOCUS.ARC
✔
FOCUS.ROOT
✔
POWER.PULS
✔
POWER.ARC
✔
Burn-in stabilizer
✔
Mains voltage compensation
✔
